Zirconium is a very strong, malleable, malleable, lustrous, silver-gray metal similar to hafnium and titanium. It is flammable in powder form and highly resistant to corrosion and heat. Zirconium is a highly corrosion-resistant metal used in many products. These include pumps, valves, nuclear applications, chemical processing, reactor vessels, heat exchangers and more.
Zirconium Product
Zirconium Product Description
Zirconium is a very strong, malleable, malleable, lustrous, silver-gray metal similar to hafnium and titanium. It is flammable in powder form and highly resistant to corrosion and heat. Zirconium is a highly corrosion-resistant metal used in many products. These include pumps, valves, nuclear applications, chemical processing, reactor vessels, heat exchangers and more.
ZhenAn is a leading supplier of zirconium products. We offer low prices and long lead times on all materials, and we are able to provide custom materials based on any specifications/drawings you provide us.
Zirconium product parameters
Zirconium Sheet & Zirconium Plate | ||
.002″ x 6″ x 12″ | .040″ x 12″ x 24″ | .500″ x 12″ x 24″ |
.004″ x 12″ x 24″ | .050″ x 12″ x 24″ | .625″ x 12″ x 24″ |
.005″ x 12″ x 24″ | .060″ x 12″ x 24″ | .750″ x 12″ x 24″ |
.010″ x 12″ x 24″ | .080″ x 12″ x 24″ | 1.00″ x 12″ x 24″ |
.015″ x 12″ x 24″ | .125″ x 12″ x 24″ | 1.50″ x 12″ x 24″ |
.020″ x 12″ x 24″ | .188″ x 12″ x 24″ | 2.00″ x 12″ x 24″ |
.025″ x 12″ x 24″ | .250″ x 12″ x 24″ | 2.50″ x 12″ x 24″ |
.030″ x 12″ x 24″ | .375″ x 12″ x 24″ | 3.00″ x 12″ x 24″ |
Zirconium Rod / Zirconium Bar | ||
.125″ dia x 72″ | .750″ dia x 72″ | 2.25″ dia x 72″ |
.188″ dia x 72″ | .875″ dia x 72″ | 2.50″ dia x 72″ |
.250″ dia x 72″ | 1.00″ dia x 72″ | 3.00″ dia x 72″ |
.375″ dia x 72″ | 1.25″ dia x 72″ | 3.50″ dia x 72″ |
.500″ dia x 72″ | 1.50″ dia x 72″ | 4.00″ dia x 72″ |
.625″ dia x 72″ | 2.00″ dia x 72″ | |
Zirconium Ribbon (Thickness) | ||
.002″ | .005″ | .008″ |
.003″ | .006″ | .010″ |
.004″ | .007″ | .015″ |
Zirconium Tube / Zirconium Pipe | ||
.125″ od x .015″ wall x 72″ | .375″ od x .015″ wall x 72″ | .750″ od x .020″ wall x 72″ |
.188″ od x .015″ wall x 72″ | .375″ od x .020″ wall x 72″ | 1.00″ od x .020″ wall x 72″ |
.188″ od x .020″ wall x 72″ | .500″ od x .015″ wall x 72″ | 1.50″ od x .030″ wall x 72″ |
.250″ od x .015″ wall x 72″ | .500″ od x .020″ wall x 72″ | 2.00″ od x .030″ wall x 72″ |
.250″ od x .020″ wall x 72″ | .625″ od x .020″ wall x 72″ | 2.00″ od x .065″ wall x 72″ |
Zirconium Wire | ||
.002 dia x 50 ft coil | .020″ dia x 50 ft coil | .050″ dia x 50 ft coil |
.003″ dia x 50 ft coil | .025″ dia x 50 ft coil | .060″ dia x 50 ft coil |
.005″ dia x 50 ft coil | .030″ dia x 50 ft coil | .062″ dia x 50 ft coil |
.008″ dia x 50 ft coil | .039″ dia x 50 ft coil | .080″ dia x 50 ft coil |
.010″ dia x 50 ft coil | .040″ dia x 50 ft coil | .090″ dia x 50 ft coil |
.015″ dia x 50 ft coil | .047″ dia x 50 ft coil | .125″ dia x 50 ft coil |
Zirconium Crucible | ||
0.5~50mm Thickness | 40~150mm Diameter | |
Zirconium Foil | ||
0.01mm-0.3mm Thickness | 10~20m Length | |
Zirconium Pellets | ||
1-3mm Diameter | 2-5mm Length | |
Zirconium Mesh | ||
4″ | 8″ | 10″ |
16″ | ||
Zirconium Spring | ||
0.5~10mm Diameter | 50~2500mm Length | |
Zirconium Ring | ||
Zirconium Strip | ||
Zirconium Crystal Bar | ||
20~40mm Diameter | ||
Industrial grade Zirconium Sponge | ||
Zirconium Flange | ||
Zirconium Aluminum Alloy | ||
-60 mesh | -80 mesh | -200 mesh |
Zirconium Pipe Fittings | ||
0.5~50mm Thickness | ||
Zirconium Custom Fabrication | ||
Zirconium Sputtering target | ||
1.00" Dia. x 0.125" Thick | 1.00" Dia. x 0.250" Thick | 2.00" Dia. x 0.125" Thick |
2.00" Dia. x 0.250" Thick | 3.00" Dia. x 0.125" Thick | 3.00" Dia. x 0.250" Thick |
4.00" Dia. x 0.125" Thick | 4.00" Dia. x 0.250" Thick | 6.00" Dia. x 0.250" Thick |
Zirconium Titanium Alloy | ||
-60 mesh | -80 mesh | |
Zirconium Fasteners | ||
0.5~50mm Thickness | ||
Zirconium Ferro silicon | ||
-60 mesh | -80 mesh | |
Specific lengths and sizes available upon request. |

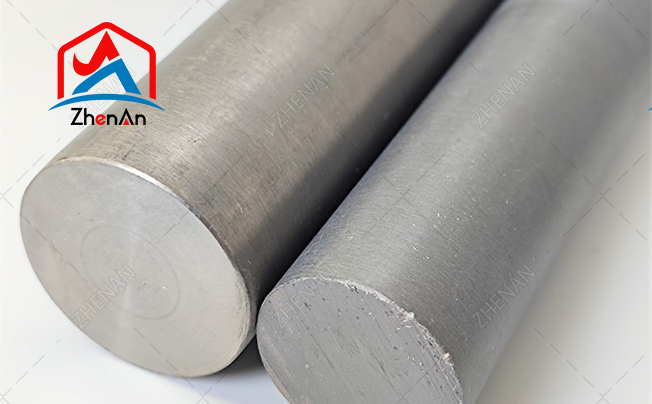

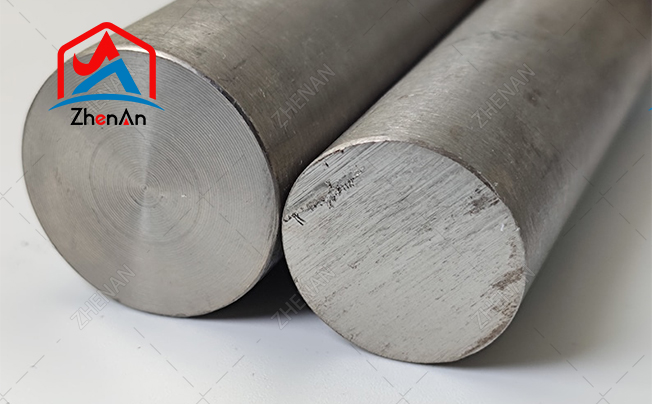

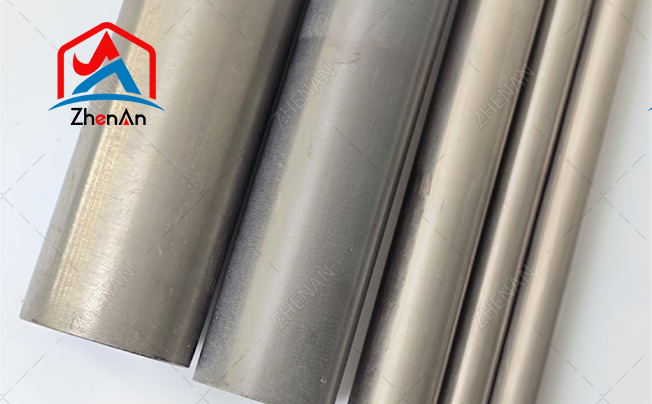

Applications of zirconium rods
Due to their high corrosion resistance, zirconium products such as these rods find many uses in medical equipment and in handling other highly corrosive chemicals. Zirconium rods can also be used as raw materials for other zirconium products such as crucibles and reactors, and can be used to produce zirconium electrodes.
Zirconium rod packaging
Our zirconium rods are carefully processed to minimize damage during storage and transportation and maintain the original quality of our products.
FAQ
Q: What information should I let you know if i want to get a quotation?
A: The required material dimension (Thickness*Width*Length, diameter*length; if possible, please kindly supply us drawings).
The required items more information, such as Surface Condition, Tolerance Request, The Quantity, and other mechanical and technical details.
If it is possible, please also provide the application of products, we will recommend the most suitable products with details for confirmation.
Q: Do you inspect the finished products?
A: Yes. Each step of production and finished products will be carried out inspection by QC department before storing in the finished goods warehouse. NG goods are not allowed in the completed goods warehouse.
Q: Can you guarantee the prompt delivery?
A: Yes, Per our experience, when we get your inquiries, not only we will evaluate the more competitive price, but also we can get the most reasonable delivery time. So the prompt delivery can be guaranteed.
Q: What is the shipping cost?
A: The shipping cost is determained by the destination port, weight, packing size, total CBM of the
products, we will try best to get the most reasonable shipping cost from the forwarders or express couriers to help you save more money.
Q: How about your payment terms?
A: We have flexible payment terms such as L/C; T/T; Western Union; D/P(Document Against Payment); etc.
